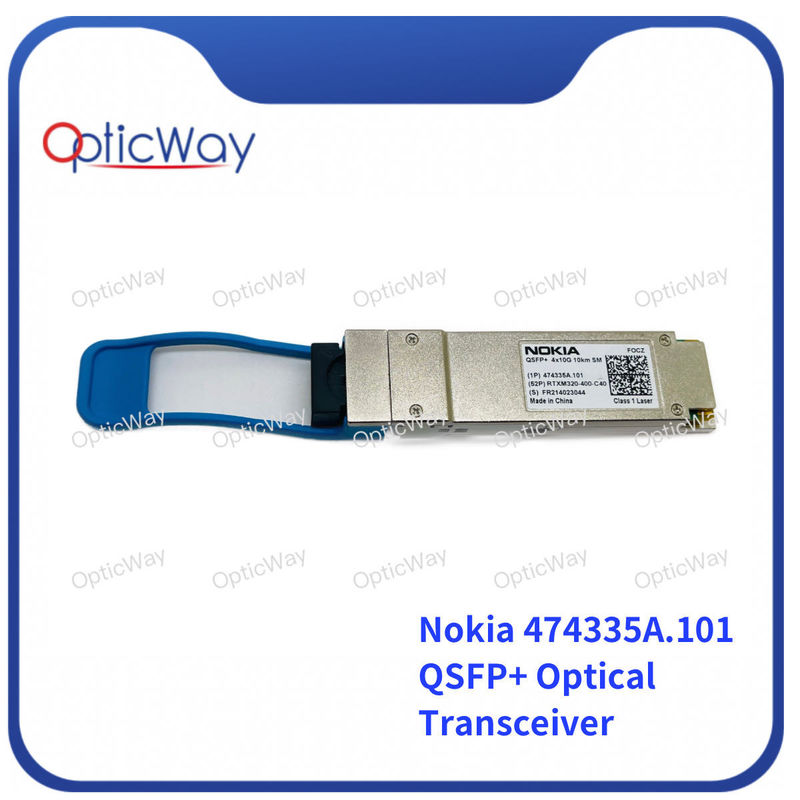

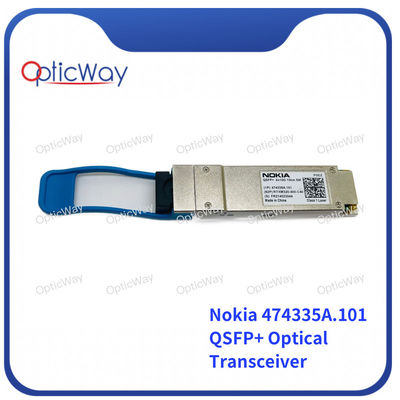

SM 10km QSFP+ Optical Transceiver Nokia 474335A.101 40G LR4 4x10G 1310nm
Product Details:
| Place of Origin: | China |
| Brand Name: | Nokia |
| Model Number: | 474335A.101 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiate |
| Delivery Time: | 5-8天 |
| Payment Terms: | TT, PayPal |
|
Detail Information |
|||
| Form Factor: | QSFP+ | Data Rate: | 40G |
|---|---|---|---|
| Wavelength: | 1310nm | Reach: | 10km |
| Cable Type: | SMF | Interface Type: | LR4 |
| Connector: | Dual-LC | Temperature Range: | Operating: 0°C To 70°C Storage: -40°C To 85°C |
| High Light: | SM QSFP+ Optical Transceiver,SM 40g QSFP+ Transceiver,LR4 QSFP+ Optical Transceiver |
||
Product Description
Product Description:Nokia 474335A.101 40G LR4 4x10G 1310nm SM 10km QSFP+ Optical Transceiver
This Nokia 474335A.101 QSFP+ transceiver modules are designed for use in 40 Gigabit Ethernet links and 4x10G OTN client interfaces over single mode fiber. They are compliant with the QSFP+ MSA, IEEE 802.3ba 40GBASE-LR4 and OTU3 C4S1-2D1 requirements specified in ITU-T Recommendation G.695. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA. The optical transceiver is RoHS compliant as described in Application Note AN-2038.
Features:
- Hot-pluggable QSFP+ form factor
- Supports 39.8 Gb/s to 44.6 Gb/s aggregate bit rates
- Power dissipation < 3.5W
- RoHS compliant
- Commercial temperature range 0°C to 70°C
- Single 3.3V power supply
- Maximum link length of 10km on Single Mode Fiber (SMF)
- Uncooled 4x10Gb/s CWDM transmitter
- XLPPI electrical interface
- Duplex LC receptacles
- Built-in digital diagnostic functions, including Tx/Rx power monitoring
Applications:
- 40GBASE-LR4 40G Ethernet
- OTN OTU3 C4S1-2D1
- OTU3e1 and OTU3e2
Specifications:
- Brand: Nokia
- Part Number: 474335A.101
- MPN: FTL4C1QM2C-NN, RTXM320-400-C40
- Form Factor: QSFP+
- Distance: 10 km
- Data Rate (max): 44.6 Gb/s
- Protocol: OTN OTU3 Compliant 40G Ethernet Compliant
- Low End Case Temperature (°C): 0
- High End Case Temperature (°C): 70
- Diagnostics: N/A
- Transmitter: 4x CWDM DFB Laser
- Receiver: PIN
- Voltage Supply: 3.3
- Connector: LC
- Wavelength: 1310nm Band
