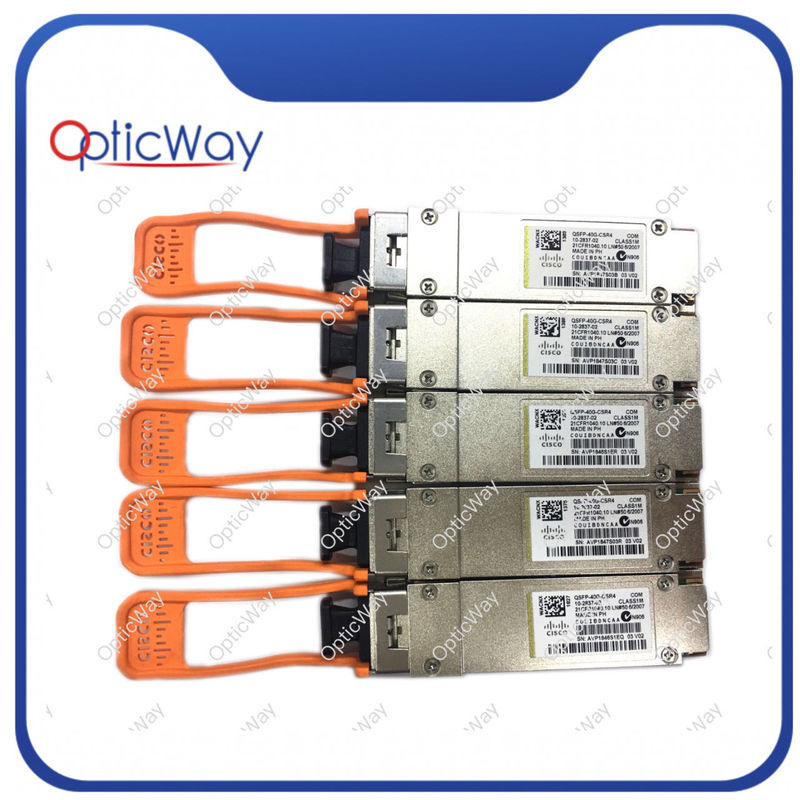

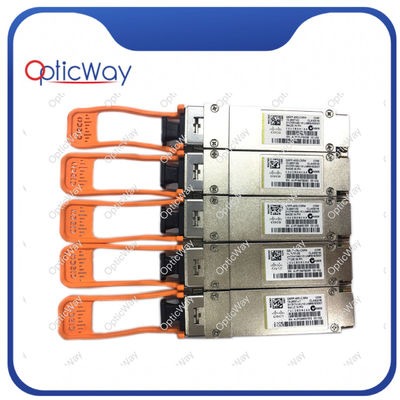

400m 850nm QSFP+ Optical Transceiver Module MMF QSFP-40G-CSR4
Product Details:
| Place of Origin: | PHILIPPINES |
| Brand Name: | Cisco |
| Model Number: | QSFP-40G-CSR4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiate |
| Delivery Time: | 5-8天 |
| Payment Terms: | TT, PayPal |
|
Detail Information |
|||
| Form Factor: | QSFP+ | Data Rate: | 40G |
|---|---|---|---|
| Wavelength: | 850nm | Reach: | 400m |
| Fiber Type: | OM3/OM4 | Transmission Media: | Multi-mode |
| Cable Type: | MMF | Temperature Range: | 0℃~70℃ |
| High Light: | QSFP-40G-CSR4 QSFP+ Optical Transceiver,QSFP-40G-CSR4 Optical Transceiver Module,MMF QSFP+ Optical Transceiver |
||
Product Description
Product Description:Cisco QSFP-40G-CSR4 40GBASE-CSR4 QSFP+ 850nm 400m QSFP+ Optical Transceiver
The QSFP+ Optical Transceiver is a four-channel, 850nm transceiver module offered by Avago. It is designed for use with multi-mode fiber, such as OM3 and OM4, and features a reach of up to 400m. It is compliant with the QSFP+ form factor and operates in a temperature range of 0℃ to 70℃. This transceiver module is ideal for applications such as data center interconnects, 4G/5G wireless backhaul, and 40G/100G Ethernet.
Technical Parameters:
| Feature | Specification |
|---|---|
| Transceiver Type | QSFP+ |
| Connector Type | LC |
| Data Rate | 40 Gigabit Ethernet (40GBASE-SR4) |
| Wavelength | 850nm |
| Reach | 400m |
| Cable Type | Multi-Mode Fiber (MMF) |
| Fiber Type | OM3/OM4 |
| Temperature Range | 0℃~70℃ |
| Form Factor | QSFP+ |
Applications:
The Cisco QSFP-40G-CSR4 optical transceiver, with model number AFBR-79E4Z-D, is a high-performance, multi-mode device designed for the QSFP+ form factor. It features a 850nm vertical-cavity surface-emitting laser (VCSEL) for data transmission over multi-mode fiber (MMF) cable and supports a wide temperature range from 0℃~70℃. This transceiver provides 40Gbps data rate over up to 150m of OM3 MMF or up to 300m of OM4 MMF at 850nm wavelength. The Cisco QSFP-40G-CSR4 optical transceiver is ideal for high-speed data center, enterprise core and distribution layer applications, as well as data center interconnects and enterprise and data center backbones.
FAQ:
- Q: What is the Brand Name of the QSFP+ Optical Transceiver? A: The Brand Name of the QSFP+ Optical Transceiver is Cisco.
- Q:What is the Model Number of the QSFP+ Optical Transceiver? A:The Model Number of the QSFP+ Optical Transceiver is QSFP-40G-CSR4.
- Q:Where is the QSFP+ Optical Transceiver originated from? A:The QSFP+ Optical Transceiver is originated from PHILIPPINES.
- Q:What is the transmission rate of the QSFP+ Optical Transceiver? A:The QSFP+ Optical Transceiver supports transmission rate of 40Gbps.
- Q:What type of fiber cable does the QSFP+ Optical Transceiver support? A:The QSFP+ Optical Transceiver supports both Multi-mode and Single-mode fiber cables.
