OM4 100GBASE-SR4 QSFP28 Transceiver Module 850nm 100m DOM MPO-12 MMF
Product Details:
| Place of Origin: | China |
| Brand Name: | Cisco |
| Model Number: | QSFP-100G-SR4-S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiate |
| Delivery Time: | 5-8天 |
| Payment Terms: | TT, PayPal |
|
Detail Information |
|||
| Form Factor: | QSFP28 | Data Rate: | 100G |
|---|---|---|---|
| Wavelenghth: | 850nm | Reach: | 100m Over OM4 MMF |
| Media: | MMF | Connector: | MTP/MPO-12 |
| Temperature Range: | 0 To 70°C | ||
| High Light: | DOM 100GBASE-SR4 QSFP28,QSFP28 Transceiver Module MPO-12,OM4 100GBASE-SR4 QSFP28 |
||
Product Description

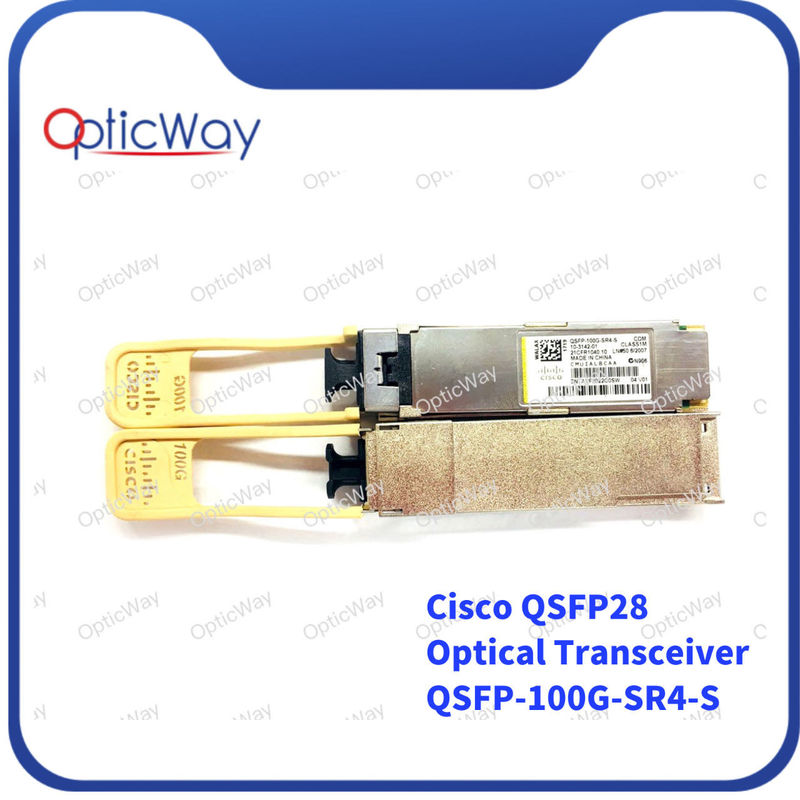

Product Description:Cisco QSFP-100G-SR4-S 100GBASE-SR4 850nm 100m OM4 DOM MPO-12 MMF QSFP28 Optical Transceiver
QSFP28 Optical Transceiver is a 100Gbps-4*25G-850nm-100m-MM-QSFP28 optical transceiver module designed for short-reach multi-mode fiber (MMF) applications. It is compliant with the QSFP28 MSA, IEEE 802.3ba 100G Ethernet and OTU4, and supports data rates up to 100Gbps. This module is equipped with a built-in optical digital diagnostics monitoring function. It is designed for 0.1KM transmission distance over multi-mode fiber (MMF) networks, providing an ideal solution for high-performance data center and enterprise network applications. It is compatible with FTLC9551REPM-HW. QSFP28 Optical Transceiver is designed for Transmission Media, Multi Mode, and provides high performance, reliability and cost-effectiveness.
Technical Parameters:
| Product Name | QSFP28 Optical Transceiver |
|---|---|
| Temperature Range | 0 To 70°C |
| Distance | 10km |
| Connector | MTP/MPO-12 |
| Reach | 100m Over OM4 MMF |
| Wavelength | 850nm |
| Media | MMF |
| Data Rate | 100G |
| Form Factor | QSFP28 |
Applications:
Cisco QSFP-100G-SR4-S 100G Optical Transceiver is a high-performance, cost-effective QSFP28 optical module for 100G Ethernet links up to 100m over OM4 MMF. It is compliant with QSFP28 MSA, IEEE 802.3ba 40GBASE-SR4, and CWDM4 MSA standards. It is designed to operate over a wide temperature range from 0 To 70°C. It supports up to 4 channels of 25Gb/s with 850nm VCSEL array and MMF. It is designed with a QSFP28 form factor, making it compatible with any standard QSFP28 port.
Cisco QSFP-100G-SR4-S 100G Optical Transceiver offers reliable performance for datacenters, cloud computing, enterprise core & distribution layer, high-performance computing clusters, etc. It is perfect for use in data transmission, storage area networks, optical transport networks, and other short-range high-density connections. It is an ideal choice for connecting servers, switches, routers, and other networking devices.
This QSFP28 optical transceiver from Cisco provides reliable performance and superior quality, making it the perfect choice for customers who are looking for a cost-efficient, low-power solution for 100G Ethernet links. It is the ideal solution for data centers, service providers, and other applications requiring high-speed data transmission.
FAQ:
- Q:What is the Brand Name of QSFP28 Optical Transceiver?
- A:The Brand Name of QSFP28 Optical Transceiver is Cisco.
- Q:What is the Model Number of QSFP28 Optical Transceiver?
- A:The Model Number of QSFP28 Optical Transceiver is QSFP-100G-SR4-S.
- Q:Where is the origin place of QSFP28 Optical Transceiver?
- A:QSFP28 Optical Transceiver is from China.
- Q:What type of applications does QSFP28 Optical Transceiver support?
- A:QSFP28 Optical Transceiver supports 100G Ethernet, 100G Fiber Channel, and other high speed interconnect applications.
- Q:What is the maximum transmission distance of QSFP28 Optical Transceiver?
- A:The maximum transmission distance of QSFP28 Optical Transceiver is 100m on OM3 Multi-mode fiber.
