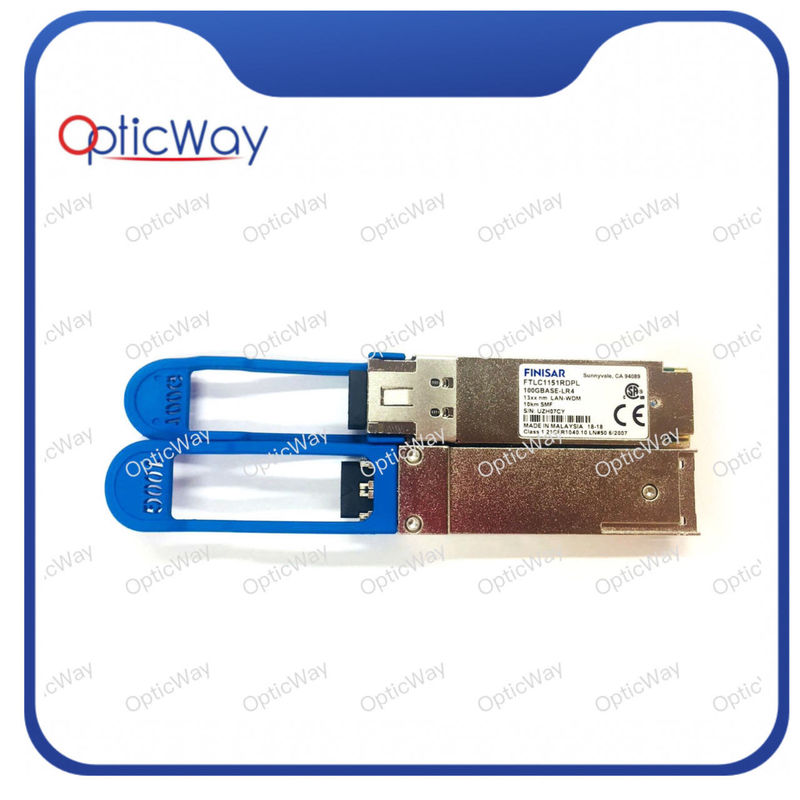

SMF 10km QSFP28 Optical Transceiver Finisar FTLC1151RDPL 100GBase-LR4 1310nm
Product Details:
| Place of Origin: | Malaysia |
| Brand Name: | Finisar |
| Model Number: | FTLC1151RDPL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiate |
| Delivery Time: | 5-8天 |
| Payment Terms: | TT, PayPal |
|
Detail Information |
|||
| Product Name: | QSFP28 Optical Transceiver | Speed: | 100GBase |
|---|---|---|---|
| Reach: | 10km | Wavelength: | 1310nm |
| Interface Type: | LR4 | Media: | SMF |
| Connector: | Dual-LC | Transmission Media: | Multi Mode |
| Temperature Range: | 0 -70°C | ||
| High Light: | SMF QSFP28 Optical Transceiver,SMF qsfp28 100gbase lr4,FTLC1151RDPL QSFP28 Optical Transceiver |
||
Product Description
Product Description:
Finisar FTLC1151RDPL 100GBase-LR4 1310nm SMF 10km QSFP28 Optical Transceiver
Finisar FTLC1151RDPL QSFP28 Optical Transceiver is a high-performance and cost-effective 100G optical transceiver module supporting data rate of 100Gbps for up to 100m over Multimode Fiber (MMF) with a wavelength of 850nm. It is compliant to the QSFP28 MSA, IEEE 802.3bm and SFF-8636 standards. It is specifically designed for 100G Ethernet links over MMF with a link length of up to 100m. The transceiver module integrates four full-duplex lanes in each direction with data rates of 25Gbps per lane. Electrical interface is compliant with SFI electrical specifications.
The QSFP28 transceiver supports a wide temperature range from 0 to 70°C and is equipped with digital diagnostics functions, which are available via the 2-wire serial interface. The transceiver is RoHS compliant and Lead Free.
Features:
- Hot pluggable QSFP28 MSA form factor
• Supports 103 Gbps and 112 Gbps
• Up to 10km reach for G.652 SMF
• Single +3.3V power supply
• Transmitter: cooled 4x25 Gbps LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)
• Receiver: 4x25/28 Gbps PIN ROSA
• 4x28G Electrical Serial Interface (CEI-28GVSR)
• Maximum power consumption 4.5W
• RoHS-6 compliant (lead-free)
• Duplex LC receptacle
• I2C interface with integrated Digital Diagnostic Monitoring
• Operating Case Temperature
o Standard 0 to +70 °C
o Extended -40 to +70 °C
o Industrial -40 to +85 °C
Technical Parameters:
| Technology Parameters | Details |
|---|---|
| Product Name | QSFP28 Optical Transceiver |
| Part Number | 34061089 |
| Interface Type | LR4 |
| Speed | 100GBase |
| Reach | 10km |
| Form Factor | QSFP28 |
| Connector | Dual-LC |
| Wavelength | 1310nm |
| Transmission Media | Multi Mode |
| Media | SMF |
| Temperature Range | 0 -70°C |
| Brand | Finisar |
Applications:
QSFP28 Optical Transceiver is a high performance 100G optical transceiver manufactured by Finisar, with the model number FTLC1151RDPL. It offers a reach of 10km over a multi-mode fiber with a wavelength of 1310nm. It supports a temperature range of 0-70°C, making it suitable for a wide range of applications. The product supports 34061089, FTLC9551REPM-HW, 100G-4*25-850nm-100m-MM-QSFP28 and is ideal for 100G data center applications. It is also suitable for other high speed optical data transmission systems such as 40G/100G Ethernet, InfiniBand QDR/DDR/SDR, Fibre Channel and other optical communication systems.
