Finisar QSFP28 Optical Transceiver FTLC1151RDPL 10km 100GBASE LR4
Product Details:
| Place of Origin: | Malaysia |
| Brand Name: | Finiar |
| Model Number: | FTLC1151RDPL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiate |
| Delivery Time: | 5-8天 |
| Payment Terms: | TT, PayPal |
|
Detail Information |
|||
| Form Factor: | QSFP28 | Data Rate: | 100G |
|---|---|---|---|
| Distance: | 10km | Wavelength: | 1310nm |
| Transmitter: | Duplex SMF | Connector: | LC |
| Tempereature: | 0°C-70°C | ||
| High Light: | 10km QSFP28 Optical Transceiver,FTLC1151RDPL,10km 100gbase lr4 qsfp28 |
||
Product Description

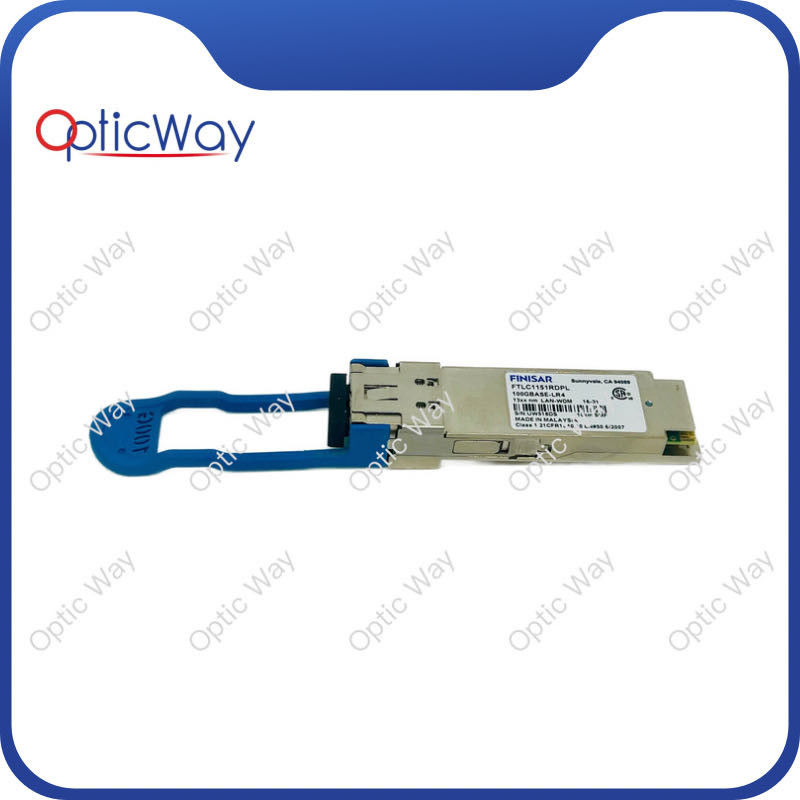

Finisar FTLC1151RDPL 10km 100GBASE-LR4 QSFP28 Optical Transceiver
Finisar FTLC1151RDPL 10km 100GBASE-LR4 QSFP28 Optical Transceiver Module
PRODUCT FEATURES
- Hot-pluggable QSFP28form factor
- Supports 103.1Gb/s aggregate bit rate
- Power dissipation < 3.5W
- RoHS-6 compliant
- Commercial case temperature range of 0°C to 70°C
- Single 3.3V power supply
- Maximum link length of 10km on Single Mode Fiber (SMF)
- 4x26Gb/s DFB-based LAN-WDM transmitter
- 4x26G retimed electrical interface
- Duplex LC receptacles
- I2C management interface
APPLICATIONS
- 100GBASE-LR4 100G Ethernet
Finisar’s FTLC1151RDPL QSFP28 transceiver modules are designed for use in 100
Gigabit Ethernet links on up to 10km of single mode fiber. They are compliant with the QSFP28 MSA1,
IEEE 802.3ba 100GBASE-LR42 and IEEE 802.3bm CAUI-46. Digital diagnostic functions are available via theI2C interface, as specified by the QSFP28MSA and Finisar Application Note AN-21525.The transceiver is RoHS-6 compliant per Directive 2011/65/EC3 and Finisar Application Note AN-20384.
XFP Finisar FTLC1151RDPL.PDF
