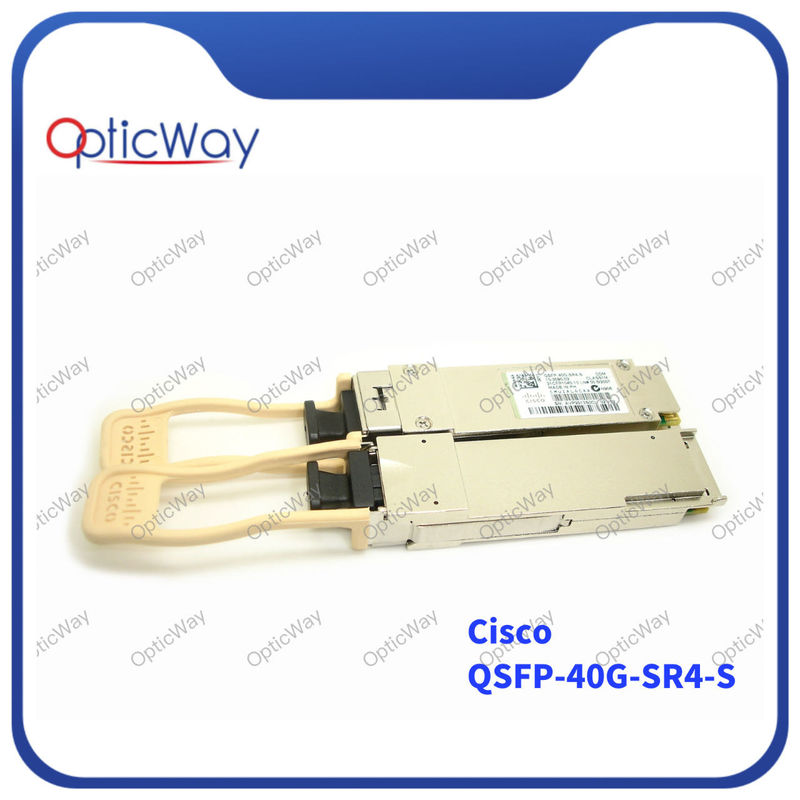

QSFP-40G-SR4-S 40G QSFP+ Transceiver Module 850nm 150m DOM MTP/MPO-12
Product Details:
| Place of Origin: | PHILIPPINES |
| Brand Name: | Cisco |
| Model Number: | QSFP-40G-CSR4-S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiate |
| Delivery Time: | 5-8天 |
| Payment Terms: | TT, PayPal |
|
Detail Information |
|||
| Temperature Range: | 0°C To 70°C | Data Rate: | 40G |
|---|---|---|---|
| Wavelength: | 850nm | Distance: | 100m @ OM3 Or 150m @ OM4 |
| Fiber Type: | OM3/OM4 | Transmission Media: | Multi-mode |
| Connector Type: | LC | Cable Type: | MMF |
| Form Factor: | QSFP+ | ||
| High Light: | QSFP-40G-SR4-S 40G QSFP+ Transceiver,150m QSFP+ Transceiver Module,150m 40G QSFP+ Transceiver |
||
Product Description
Product Description:Cisco QSFP-40G-SR4-S 40GBASE-SR4 850nm 150m DOM MTP/MPO-12 QSFP+ Optical Transceiver Module
QSFP+ Optical Transceiver is a high-performance 40 Gigabit Ethernet (40GBASE-SR4) optical transceiver module that supports multi-mode fiber (MMF) connectivity. It complies with the QSFP+ Multi-Source Agreement (MSA) and IEEE 802.3ba 40GBASE-SR4 standards. The transceiver uses the four channel VCSEL array for transmitting and PIN array for receiving. It supports up to 100m transmission over OM3 or 150m transmission over OM4 MMF, respectively, at a wavelength of 850nm. The transceiver has a metal enclosure for lower EMI and a duplex LC connector for connectivity. It is designed to operate under a wide temperature range of 0°C to 70°C and storage temperature range of -40°C to 85°C.
Features:
- Product Name: QSFP+ Optical Transceiver
- Temperature Range: Operating: 0°C To 70°C Storage: -40°C To 85°C
- Fiber Type: OM3/OM4
- Cable Type: MMF
- Distance: 100m @ OM3 Or 150m @ OM4
- Data Rate: 40G
- Four Channel
Technical Parameters:
| Parameter | Value |
|---|---|
| Data Rate | 40G |
| Distance | 100m @ OM3 Or 150m @ OM4 |
| Fiber Type | OM3/OM4 |
| Temperature Range | Operating: 0°C To 70°C Storage: -40°C To 85°C |
| Form Factor | QSFP+ |
| Cable Type | MMF |
| Wavelength | 850nm |
| Connector Type | LC |
| Transmission Media | Multi-mode |
| Product Model | QSFP-40G-SR4-S |
Applications:
Cisco QSFP-40G-CSR4-S is a four channel QSFP+ optical transceiver module with 850nm wavelength laser. It is designed for short range, high speed data transmission applications up to 40G over Multi-mode Fiber (MMF) with LC connector type. The transceiver supports up to 100m distance over OM3 MMF or 150m distance over OM4 MMF, making it perfect for enterprise and data center applications.
This Cisco QSFP+ transceiver module is an ideal solution for high performance computing, storage area networks, and high speed interconnects. It delivers superior performance with low power consumption and is backed by Cisco's industry-leading quality assurance.
FAQ:
- Q: What is Cisco QSFP+ Optical Transceiver?
A: Cisco QSFP+ Optical Transceiver is a high-performance integrated duplex 40G Ethernet optical module. The model number is QSFP-40G-CSR4-S, and it is made in the Philippines. - Q: What are the features of Cisco QSFP+ Optical Transceiver?
A: Cisco QSFP+ Optical Transceiver supports 40G Ethernet speeds and comes with a duplex LC connector interface. It is compliant with MSA and IEEE 802.3ba standards, and it is RoHS-6 compliant. - Q: What type of cables are compatible with Cisco QSFP+ Optical Transceiver?
A: Cisco QSFP+ Optical Transceiver is compatible with duplex LC cables. - Q: Does Cisco QSFP+ Optical Transceiver support hot-swappable?
A: Yes, Cisco QSFP+ Optical Transceiver supports hot-swappable function. You can plug it into the existing network without interrupting the services. - Q: What is the operating temperature of Cisco QSFP+ Optical Transceiver?
A: The operating temperature of Cisco QSFP+ Optical Transceiver is 0 to 70 degrees Celsius (32 to 158 degrees Fahrenheit).
