Avago 40G QSFP+ Module AFBR-79E4Z-D 40GBASE-SR4 850nm Optical Transceiver
Product Details:
| Place of Origin: | PHILIPPINES |
| Brand Name: | Avago |
| Model Number: | AFBR-79E4Z-D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiate |
| Delivery Time: | 5-8天 |
| Payment Terms: | TT, PayPal |
|
Detail Information |
|||
| Form Factor: | QSFP+ | Wavelength: | 850nm |
|---|---|---|---|
| Distance: | 100m | Cable Type: | MMF |
| Connector Type: | LC | Fiber Type: | OM3/OM4 |
| Transmission Media: | Multi-mode | Temperature Range: | 0℃~70℃ |
| High Light: | 850nm 40G QSFP+ Module,AFBR-79E4Z-D,AFBR-79E4Z-D optical transceiver module |
||
Product Description

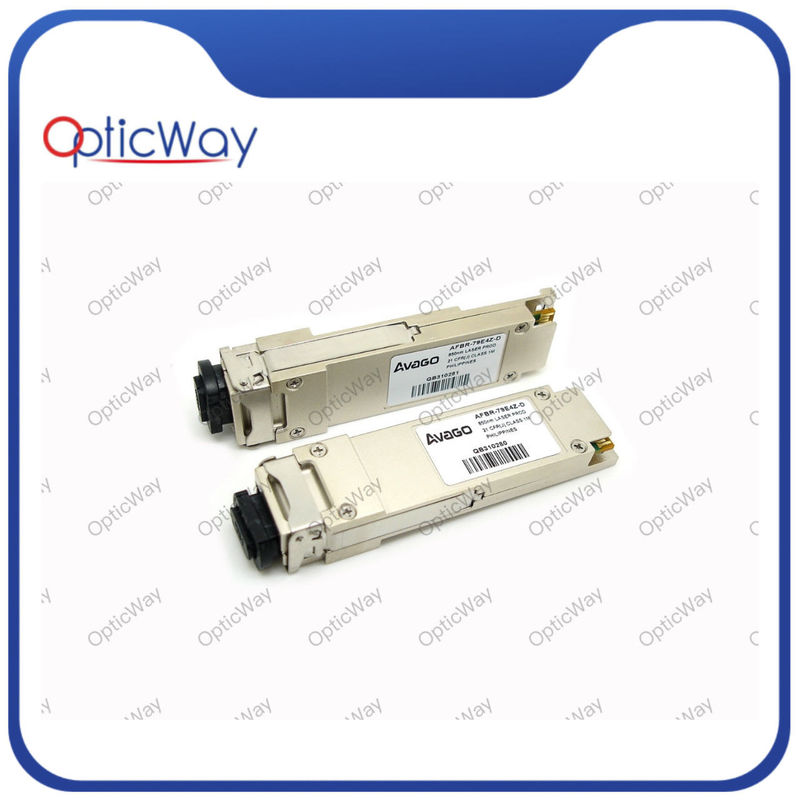

Product Description:Avago AFBR-79E4Z-D 40GBASE-SR4 850nm 40 Gigabit QSFP+Fiber Optic Transceive
QSFP+ Optical Transceiver is a high-performance, cost-efficient optical module for short-range data center, enterprise networking and high-performance computing interconnect applications. It is compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4. This transceiver is designed for 40 Gigabit Ethernet links up to 100m reach over OM3 or OM4 fiber. It works on 850nm wavelengths with LC connector type.
The QSFP+ Optical Transceiver supports temperature range from 0℃ to 70℃. It is compliant with RoHS and designed to meet the requirements of data center, enterprise and high-performance computing applications. It offers reliable and cost-effective 40G optical connection over fiber cabling with LC connector. It is fully interchangeable with other QSFP+ MSA compliant devices.
Technical Parameters:
| Parameters | Description |
|---|---|
| Brand | Avago |
| Interface Type | QSFP+ |
| Connector Type | LC |
| Data Rate | 40G |
| Wavelength | 850nm |
| Cable Type | MMF |
| Fiber Type | OM3/OM4 |
| Distance | 100m |
| Temperature Range | 0℃~70℃ |
| Transmission Media | Multi-mode |
Applications:
Avago AFBR-79E4Z-D QSFP+ Optical Transceiver is an ideal solution for short distance 100m multi-mode fiber transmission. The product is designed and manufactured by Avago, a leading brand in the Philippines, and is capable of operating in a wide temperature range of 0℃~70℃. It is applicable for both OM3 and OM4 multi-mode fiber cables and supports up to 4x10G Ethernet, Infiniband QDR, and SONET. With its high-performance and superior quality, Avago AFBR-79E4Z-D QSFP+ Optical Transceiver can be used in various scenarios such as data center, enterprise networks, and storage area networks.
FAQ:
- Q: What is Avago AFBR-79E4Z-D?
- A: Avago AFBR-79E4Z-D is a QSFP+ Optical Transceiver manufactured by Avago, that originated from the Philippines.
- Q: What type of connector does the Avago AFBR-79E4Z-D use?
- A: The Avago AFBR-79E4Z-D uses an MPO (Multi-fiber Push-on) connector.
- Q: What are the data transmission speeds of the Avago AFBR-79E4Z-D?
- A: The Avago AFBR-79E4Z-D supports data transmission speeds up to 40 Gbps.
- Q: What type of fiber optic cable does the Avago AFBR-79E4Z-D support?
- A: The Avago AFBR-79E4Z-D supports Multi-Mode OM3 fiber optic cable.
- Q: What is the operating temperature range of the Avago AFBR-79E4Z-D?
- A: The operating temperature range of the Avago AFBR-79E4Z-D is 0°C to 70°C.
