30m SFP+ Fiber Transceiver Module HPE 813874-B21 10GBASE-T Copper RJ-45
Product Details:
| Place of Origin: | Malaysia |
| Brand Name: | Finisar |
| Model Number: | FTLX1475D3BCL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiate |
| Delivery Time: | 5-8天 |
| Payment Terms: | TT, PayPal |
|
Detail Information |
|||
| Form Factor: | SFP+ | Date Rate: | 10G |
|---|---|---|---|
| Reach: | 30m | Connector: | RJ-45 |
| Cable Type: | Copper | Temperature: | 0°-70°C |
| High Light: | 30m SFP+ Fiber Transceiver,HPE 813874-B21,RJ-45 SFP+ Fiber Transceiver |
||
Product Description
HPE 813874-B21 10GBASE-T SFP+ Copper RJ-45 30m SFP+ Fiber Transceiver
Product Description:

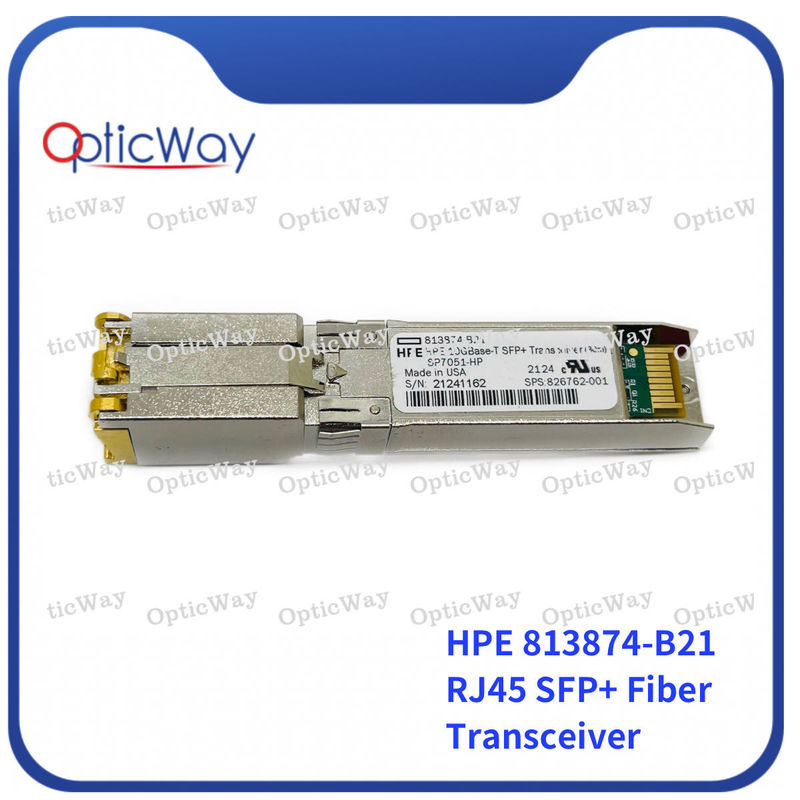

HPE BladeSystem 813874-B21 10GBASE-T SFP+ Module (Copper, 30m, RJ-45)
This 813874-B2110GBASE-T Copper SFP+ transceiver is designed for use with HPE BladeSystem networking equipment such as 10 Gigabit Ethernet (10 GbE) Switches, Routers, Network Interface Cards (NICs) and 10G Ethernet Media Converters. It is programmed and tested to perform identical to the original HPE BladeSystem 813874-B21 10G SFP+ copper transceiver and provide a cost-effective replacement. It’s specifically designed for high speed 10 Gigabit Ethernet communication over Cat 6a / Cat7 cable. It is compliant with the Multi-Source Agreement (MSA) and 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T standards as specified in IEEE STD 802.3an, 802.3ab and 802.3au.
Features:
• Coding as 455883-B21, Functionally similar to HPE BladeSystem 813874-B21 10GBASE-T SFP+ transceiver
• Link length up to 30m using Cat 6a/Cat 7 cable
• Backward compatibility: Supports 1000Base-T/2.5GBase-T/5GBase-T
• Low Power Consumption (2.5W @ 30m)
• Auto-negotiates with other 10GBase-T PHYs
• Provides Low-cost solution for copper network edge applications
• RJ-45 connector
Specification:
| Part Number | 813874-B21 | Optcore Part Number | SFPP-T-HPB |
| Form Factor | SFP+ | Data Rate | 10GBASE-T |
| Wavelength | N/A | Cable Type | Cat 6a/Cat 7 cable |
| Max Distance | 30 m | Optical Components | N/A |
| Transmitter Power | N/A | Extinction ratio | N/A |
| Receiver Sensitivity | N/A | Receiver Overload | N/A |
| Connector | 1 – RJ-45 Female | Digital Diagnostic Monitoring | No |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.035 kg |
| Application | 10G Ethernet over category 6a/7 twisted-pair copper cabling
Enterprise data centers and server consolidations Low-cost campus backbones |
Compliance | SFF-8431 MSA SFF-8432 MSA IEEE 802.3az RoHS |
