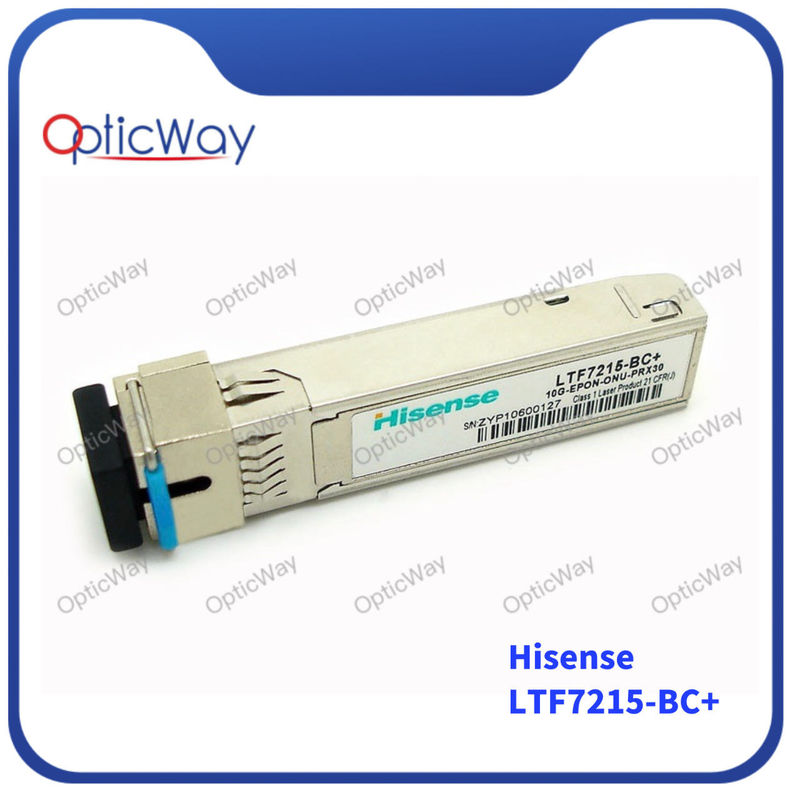

Hisense Optical Transceiver Module LTF7215-BC+ SFP+ 10G EPON ONU 1310nm
Product Details:
| Place of Origin: | China |
| Brand Name: | Hisense |
| Model Number: | LTF7215-BC+ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiate |
| Delivery Time: | 5-8天 |
| Payment Terms: | TT, PayPal |
|
Detail Information |
|||
| Product Name: | SFP PON Transceiver | Package: | SFP+ |
|---|---|---|---|
| Speed: | 10G | Data Rate: | 10Gbps |
| Reach: | 20km | Wavelength: | 1310nm |
| Interface: | SC | Operating Temperature: | -40℃ To +85℃ |
| High Light: | 1310nm Optical Transceiver Module,1310nm SFP+ Transceiver Module,LTF7215-BC+ Optical Transceiver Module |
||
Product Description
Product Description:Hisense LTF7215-BC+ SFP+ 10G EPON ONU Transceiver
LTF7215 SFP+ 10G EPON ONU Transceiver
The LTF7215 is a 10Gb/s EPON ONU duplex optical transceiver designed for low cost point-to-multipoint (P2MP) Fiber to the Home (FTTH), Business or Curb (FTTx) applications. It employs a 1577nm CW mode downlink ADP/TIA receiver operating at 10.3125Gb/s and a 1310nm DFB burst mode uplink transmitter operating at 1.25Gb/s. The LTF7215 is designed to be backward compatible with legacy Gigabit Ethernet PON systems. It is housed in a rugged die cast SFP+ package with the SC optical receptacle and is de-signed to operate over the commercial and industrial temperature ranges.The transceiver requires a single 3.3V power supply. It is FDA 21CFR1040.10 and IEC 60825-2.Class I laser safety compliant and meets the EEC Directive 2002/95/EC for RoHS compliance. The LTF7215 incorporates the monitor or control functions Tx_Burst and Rx_LOS.
- Brand: Hisense
- Part Number: LTF7215-BH+
- Package: SFP+
- Interface: SC
- Reach: 20km
- Tx Output: 0.62~5.62dBm
- Tx Rate: 1.25Gb/s
- Tx Wavelength: 1310nm
- Rx Input: -28.5dBm
- Rx Rate: 10.3125Gb/s
- Rx Wavelength: 1577nm
- 10G Ethernet Passive Opitacal Access Network
- Fiber to the Home
- Fiber to the Building
- Fiber to the Curb
- Dual Wavelength Bidi Transceiver
- Single Fiber, Full Duplex Operation
- 2x10 SFP+ Package Outlines
- SC Receptacle Optical connector
- Single 3.3V DC Input Voltage
- Optical Transmitter1.25Gb/s Data Rate
- 1310nm DFB Laser
- LVPECL AC Coupled Signal Input
- LVTTL Tx Disable
- Optical Receiver
- 10.3125Gb/s Data Rate
- 1577nm APD/TIA
- BER≤10-3, PRBS 2^31-1
- CML AC Coupled Signal Output
- LVTTL Rx_LOS
- Control and Monitor Interface
- LVTTL Tx Fault
- LVTTL Tx_Burst
- LVTTL Mod_ABS
- LVTTL Tx_SD
- LVTTL Rx_Los
- LVTTL P_Down
FAQ:
- Q: What is the product?
- A: The product is a SFP PON Transceiver from Hisense, model number LTF7215-BC+. It is made in China.
- Q: What is the transmission distance?
- A: The transmission distance is up to 20km.
- Q: What is the operating temperature range?
- A: The operating temperature range of the SFP PON Transceiver is -40°C to 85°C.
- Q: What is the input power?
- A: The input power range is -5dBm to +5dBm.
- Q: What is the output power?
- A: The output power range is -7dBm to +5dBm.
