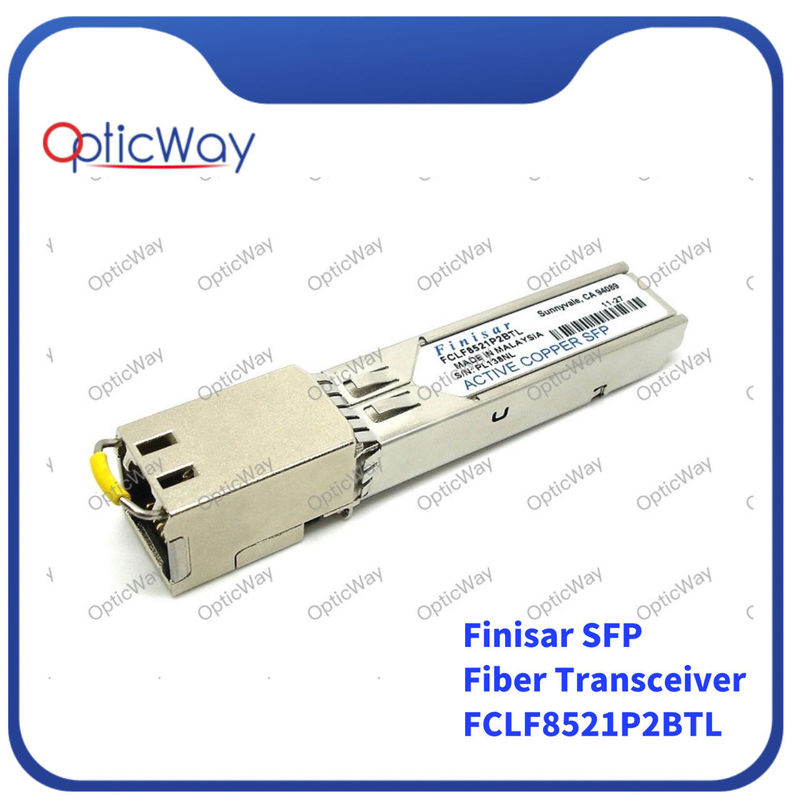

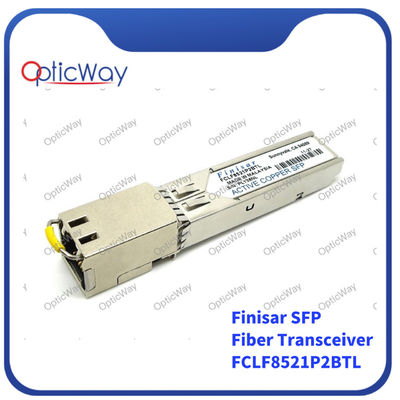

Copper SFP Fiber Transceiver Finisar FCLF8521P2BTL 10/100/1000BASE-T
Product Details:
| Place of Origin: | Malaysia |
| Brand Name: | Finisar |
| Model Number: | FCLF8521P2BTL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiate |
| Delivery Time: | 5-8天 |
| Payment Terms: | TT, PayPal |
|
Detail Information |
|||
| Distance: | 100m | Power Consumption: | 1.5W |
|---|---|---|---|
| Data Rate: | 1,25Gb/s | Product Name: | SFP Fiber Transceiver |
| Connector Type: | RJ45 | Cable Type: | CATx |
| Operating Voltage: | 3.3V | Temperature Range: | 0 - +70 °C |
| High Light: | Copper SFP Fiber Transceiver,FCLF8521P2BTL,FCLF8521P2BTL Copper SFP Transceiver |
||
Product Description
Product Description:Finisar FCLF8521P2BTL 10/100/1000BASE-T Copper SFP Fiber Transceiver
Finisar’s FCLF8521P2BTL 1000BASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA)1 . They are compatible with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE Std 802.3. The transceiver is RoHS compliant and per Directive 2011/65/EU3 and Finisar Application Note AN-2038. The 1000BASE-T physical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features. The FCLF8521P2BTL is compatible with 1000BASE-X auto-negotiation, but does not have a link indication feature (RX_LOS is internally grounded). See AN-2036, “Frequently Asked Questions Regarding Finisar’s 1000BASE-T SFPs”, for a more complete explanation on the differences between the two models and details on applications issues for the products. The FCLF8522 shall support both RX_LOS pin for link indication and 1000BASE-X auto-negotiation.
Key Features:
- Up to 1.25Gb/s bi-directional data links
- Hot-pluggable SFP footprint
- Extended case temperature range (-40°C to +85°C )
- Fully metallic enclosure for low EMI
- RoHS compliant and Lead Free
- Low power dissipation (1.05 W typical)
- Compact RJ-45 connector assembly
- Access to physical layer IC via 2-wire serial bus
- 10/100/1000 BASE-T operation in host systems with SGMII interface
