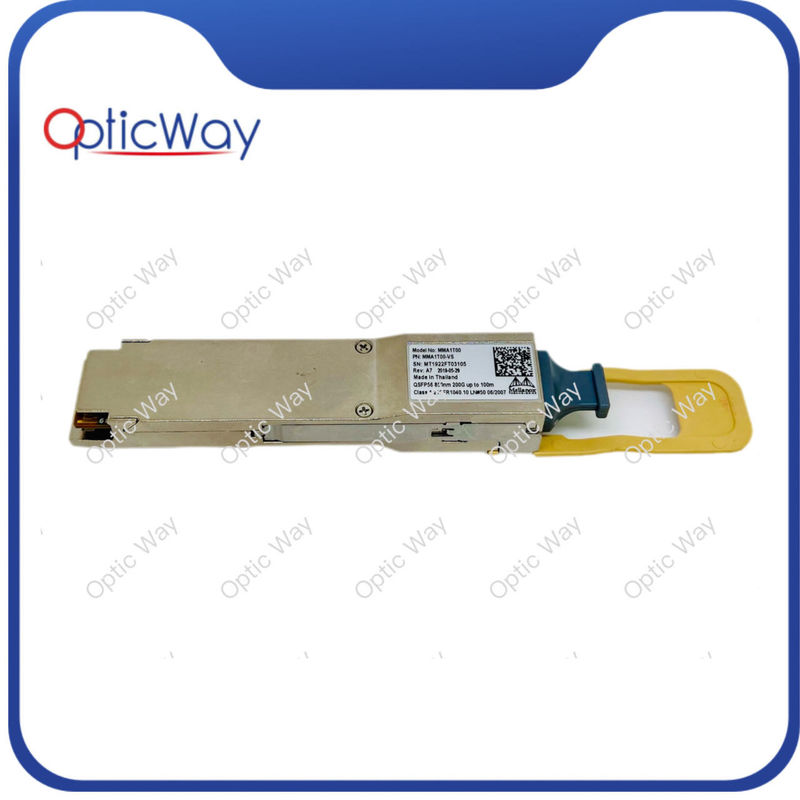

MMF QSFP56-DD Fiber Transceiver Mellanox MMA1T00-VS 200GBASE-SR4 850nm 100m DOM
Product Details:
| Place of Origin: | Thailand |
| Brand Name: | Mellanox |
| Model Number: | MMA1T00-VS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiate |
| Delivery Time: | 5-8天 |
| Payment Terms: | TT, PayPal |
|
Detail Information |
|||
| Form Factor: | QSFP56 | Data Rate: | 200G |
|---|---|---|---|
| Distance: | 100m | Connector: | MTP/MPO-12 UPC |
| Wavelength: | 850nm | Transmission Media: | MMF |
| Temperature Range: | 0~70°C | ||
| High Light: | MMF QSFP56-DD Fiber Transceiver,MMA1T00-VS,850nm QSFP56-DD Optical Transceiver |
||
Product Description
Mellanox MMA1T00-VS 200GBASE-SR4 850nm 100m DOM MTP/MPO-12 MMF QSFP56 Fiber Transceiver
Mellanox MMA1T00-VS 200GbE Ethernet QSFP56 MMF 850nm 100m QSFP56 Transceiver Product Specifications
Key Features :
- Up to 200Gb/s data rate
- Up to 100m on OM4 and 70m on OM3 multimode fiber at 200Gb/s
- 4x 50Gb/s PAM4 modulation
- Programmable Rx output amplitude and emphasis
- Adaptive Tx input equalizer
- SFF-8665 compliant QSFP56 port
- SFF-8636 DDM and I2C management interface compliant
- Single 3.3V power supply
- 4.35W typ. power consumption
- QSFP56 power class 7
- Class 1 laser safety
- Hot pluggable
- RoHS compliant
- MPO-12 UPC male receptacle connector
Applications:
- IEEE 802.3 200GAUI-4/200GBASE-SR4 compliant Ethernet links
- Backward compatible with 100G Ethernet links
