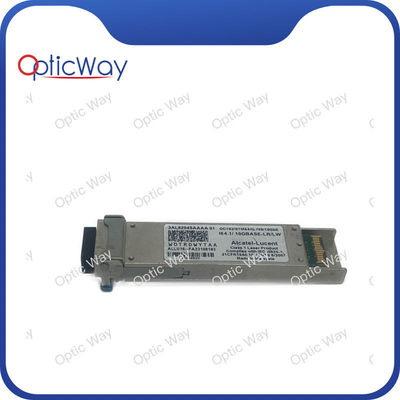

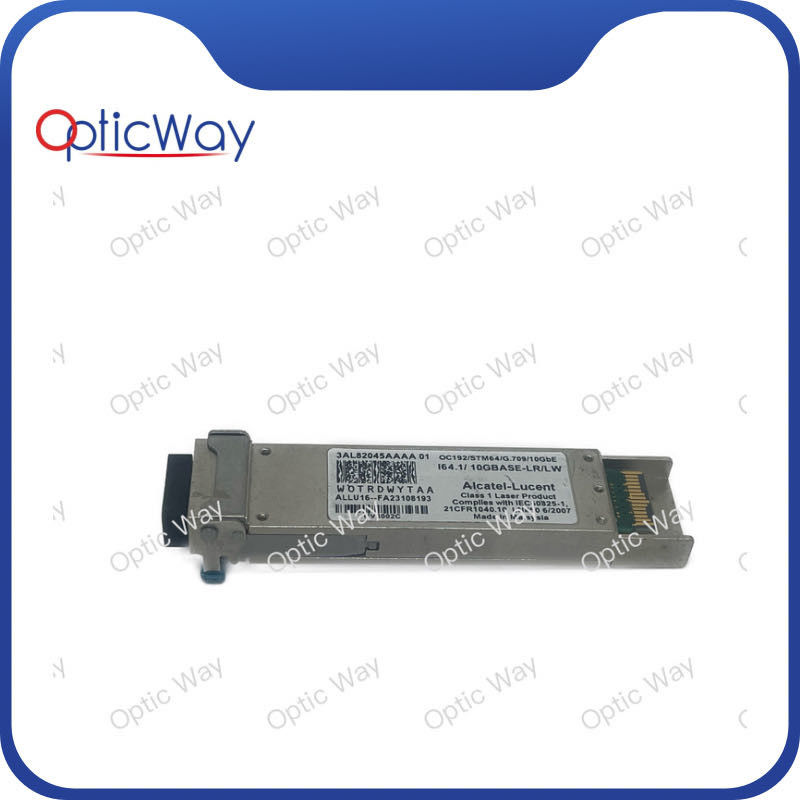

1310nm 10km 10G XFP Module Alcatel Lucent 3AL82045AAAA 01 XFP Transceiver
Product Details:
| Place of Origin: | Malaysia |
| Brand Name: | Nokia （Alcatel-Lucent） |
| Model Number: | 3AL82045AAA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiate |
| Delivery Time: | 5-8天 |
| Payment Terms: | TT, PayPal |
|
Detail Information |
|||
| Form Type: | XFP | Reach: | 10km |
|---|---|---|---|
| Wavelength: | 1310nm | Speed: | 10-Gigabit |
| Transceiver Type: | LR | Media: | SMF |
| Tempereature: | 0°-70°C | ||
| High Light: | 1310nm 10G XFP Module,1310nm 10G XFP Transceiver,10km 10G XFP Module |
||
Product Description
Alcatel Lucent 3AL82045AAAA 01 XFP 10G 1310km 10km XFP Fiber Optical Transceiver
Alcatel Lucent 3AL82045AAAA 01 XFP 10G 1310km 10km XFP Fiber Optical Transceiver
PRODUCT FEATURE
- Supports 8.5Gb/s to 11.3Gb/sbit rates
- Power dissipation <1.5W
- Extended temperature range:-40 C to 85 C
- RoHS-6 Compliant (lead-free
- Hot-pluggable XFP footprint
- Single Power supply: 3.3V
- Maximum link length of 1okm
- Uncooled 1310nm DFB laser
- No Reference Clock required
- Built-in digital diagnostic functions
APPLICATIONS
- SONET/SDH OC-192 SR-1ITU G.693,VSR2000-2R1
- 10GBASE-LR /LW 10G Ethernet
- 1200-SM-LL-L 10G Fibre Channeland 800-SM-LC-L 8G Fibre ChannelITU G.709 OTN/FEC OTUle,OTU2OTU2e
- 10G CPRI
Nokia's 3AL82045AAAA Industrial Temperature Small Form Factor 10Gb/s (XFPtransceivers are compliant with the current XFP Multi-Source Agreement (MSA Specification . They are a true multi-protocol transceiver complying with SONET OC192 SR-1, SDH STM I-64.1, 10-Gigabit Ethernet 10GBASE-LR /LW per IEEE 802.3ae10G Fibre Channel 1200-SM-LL-L,8G Fibre Channel 800-SM-LC-L.10G CPRIandITU-T.G709 OTN/FEC protocols OTUle, OTU2, and OTU2e. Digital diagnostics functions are available via a 2-wire serial interface. as specified in the XFP MSA. The optical transceiver is compliant per the RoHS Directive 2011/65/EU3.
