| Place of Origin: | Hanoi, Vietnam |
| Brand Name: | MODULELAND |
| Certification: | CE RoHS FCC TUV |

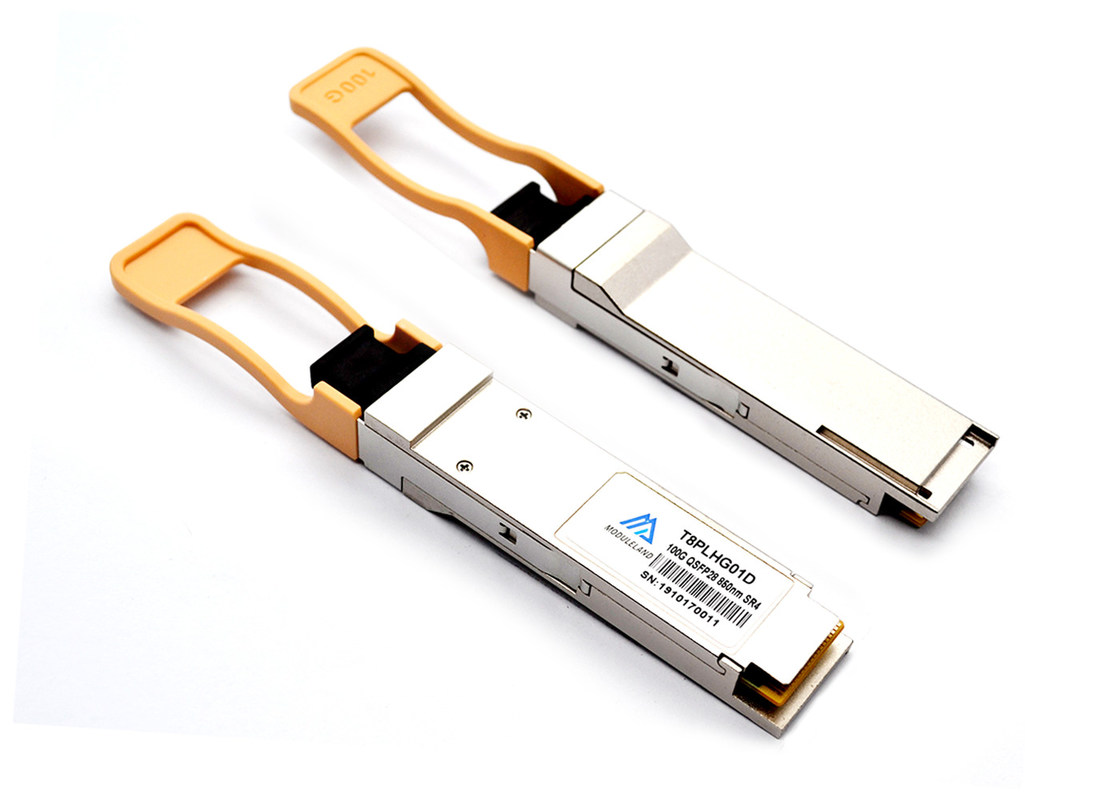

| Model Number: | QSFP28-100G-SR4 |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 10 or 20PCS /Plastic tray, 1PC/Gift box |
| Supply Ability: | 5000 Piece/Pieces per Month |
| Output Power: | -8~+1dbm | Aggregate Bandwidth: | 100Gb/s |
|---|---|---|---|
| Wavelength: | 850nm | Distance: | 100m/150m |
| Sensivity: | < -11.5dbm | Channel Bandwidth: | 11.2Gbps |
| Channels Amount: | MPO-12 Fibers | Power Supply: | 3.3V |
| Temperature Range: | 0°C To 70°C | Vcsel: | Yes |
| Compatible: | Cisco Arista Juniper Dell Extreme HW H3C Ciena Mellanox | ||
| High Light: | 100g qsfp28 lr4,100g qsfp28 sr4 |
||
1. Features:
MPO 12 receptacle
Hot-Pluggable QSFP28 form factor
Supports 103.1Gb/s aggregate bit rate
4 × 25Gb/s 850nm VCSEL based transmitter
Compliant with 100G Ethernet IEEE802.3ba
Compliant to QSFP+ SFF-8436 Specification
Capable of ever 100m transmission on OM3 MMF and 150m on OM4 MMF
Proprietary back-planes
Digital Diagnostics Monitoring Interface
Proprietary back-planes
Power Supply : +3.3v
Temperature range 0°C to 70°C
RoHS-6 Compliant
I2C management interface
2. Applications:
Rack to rack
Data centers
Metro networks
Switches and Routers
Infiniband 4x SDR, DDR, QDR
3. Certificate
1. Warranty
Five years Warranty, three monthes free exchange and one year free repairing.
2. OEM, ODM are welcome.
3. Free sample will be provided.
Free samples under a certain value are available,with freight cost collect.
4. Any Inquire is welcome.
Any inquire will be replied within 24 hours.
5. After-sales service.
a. From the beginning of production till the successful delivery, we will track on time and post you the status.
b. When the goods arrived, if you have question after inspection, please feel free to contact us, we'll provide solution.
Q: What payment terms do you accept?
A: T/T,L/C at sight,Western Union are acceptable. Other payment terms are negotiable.
Q: what is the lead time?
A: For standard products,we keep enough stock,cqn ship out in 1-3 days after PO confirmation.For big quantity and special products,Please check lead time with our sales representative.
Q: What are the shipping ways can you offer?
A: For small quantity we ship by Express like DHL,FedEX,TNT,UPS, EMS etc. For large quantity we can use airshipment ot other appointed method by clients.
Q: What euipments can your products be compatible with?
A: Our products can be compatible with all market brand.
Q: How to place an order?
A: 1> Confirm order details with our sales representatives.
2> Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3> Confirm shipping details and dispatch goods, tracking number will be sent to you promptly after the shipment is picked up.
4> We will help to track your goods until you receive them safely.
