| Place of Origin: | Hanoi, Vietnam |
| Brand Name: | MODULELAND |
| Certification: | CE RoHS FCC TUV |
| Model Number: | TQPM03D |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 5 or 1PCS /Plastic tray, 1PC/Gift box |
| Data Rate: | 40Gb/S | Distance: | 300m |
|---|---|---|---|
| Wavelength: | 850nm | Connector: | MPO |
| Power Supply: | 3.3v | Sensitivity: | <11.5dBm |
| High Light: | VCSEL 40G QSFP+ Transceiver,300m 40G QSFP+ Transceiver,MTP MPO Qsfp Optical Transceiver |
||

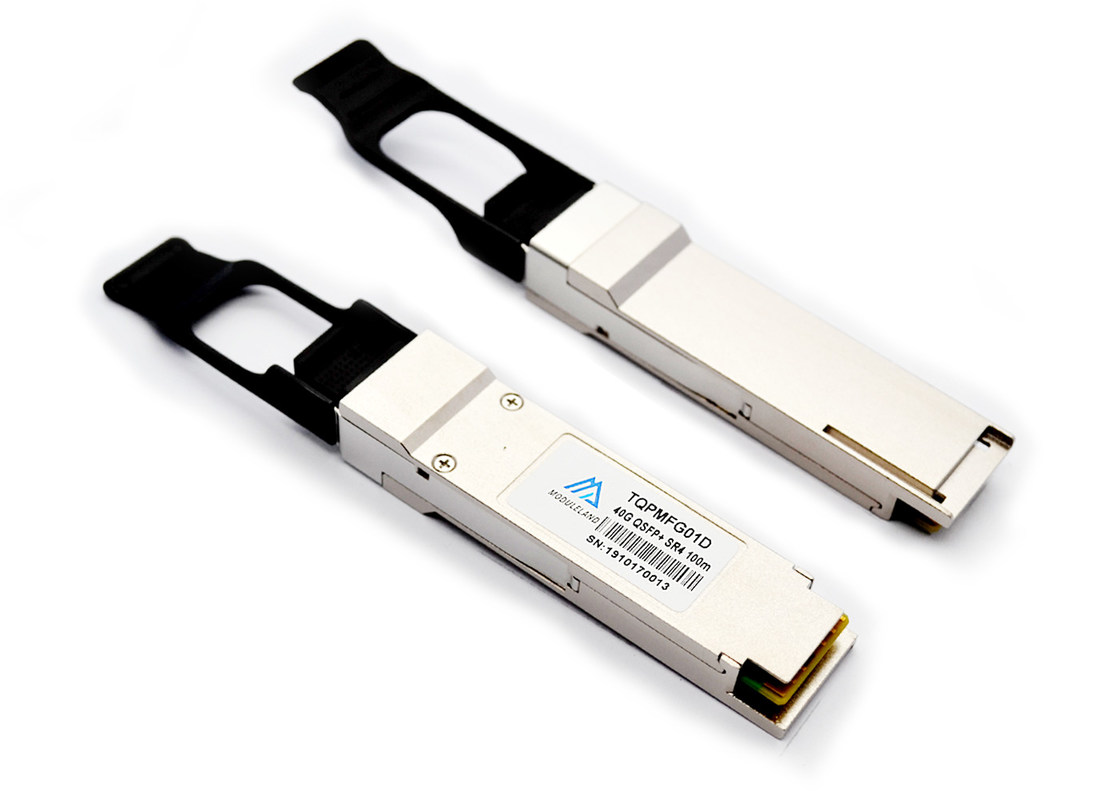

40Gb/s 300m QSFP+ Transceiver MTP/MPO Connector, 850nm, VCSEL, Multimode
1. Features:
4 independent full-duplex channels
Up to 11.2Gbps per channel bandwidth
Aggregate bandwidth of > 40Gbps
MTP/MPO optical connector
QSFP MSA compliant
Digital diagnostic capabilities
Capable of over 300m transmission on OM3 MMF (Multimode Fiber) and 400m on OM4 MMF
CML compatible electrical I/O
Single +3.3V power supply operating
TX input and RX output CDR retiming
Built-in digital diagnostic functions
Temperature range 0°C to 70°C
RoHS Compliant Part
2. Applications:
Rack to rack
Data centers
Metro networks
Switches and Routers
Infiniband 4x SDR, DDR, QDR
3. Description:
The TQPM03D is a parallel 40Gbps Quad Small Form-factor Pluggable (QSFP) optical module that provides increased port density and total system cost savings. The QSFP full-duplex optical module offers 4 independent transmit and receive channels, each capable of 10Gbps operation for an aggregate bandwidth of 40Gbps 300m on OM3 Multimode Fiber (MMF)and 400m on OM4 MMF.
4. Optical Parameters(TOP = 0 to 70 °C, VCC = 3.0 to 3.6 Volts)
| Parameter | Symbol | Min | Typ | Max | Unit | Ref. |
| Transmitter | ||||||
| Optical Wavelength | λ | 840 | 860 | nm | ||
| RMS Spectral Width | Pm | 0.5 | 0.65 | nm | ||
| Average Optical Power per Channel | Pavg | -7 | -2.5 | +1.0 | dBm | |
| Laser Off Power Per Channel | Poff | -30 | dBm | |||
| Optical Extinction Ratio | ER | 3.5 | dB | |||
| Relative Intensity Noise | Rin | -128 | dB/HZ | 1 | ||
| Optical Return Loss Tolerance | 12 | dB | ||||
| Receiver | ||||||
| Optical Center Wavelength | λC | 840 | 860 | nm | ||
| Receiver Sensitivity per Channel | R | -11 | dBm | |||
| Maximum Input Power | PMAX | +0.5 | dBm | |||
